1) Five optional sensors for measuring special shaped work-pieces.
2) DSP chip controlled achieves high accuracy and fast testing speed.
3) Matrix LCD screen displays all parameters and data.
4) 13 parameters and 4 filtering methods: RC, PC-RC, GAUSS and D-P.
5) High quality with ISO/ DIN/ CE/ JIS/ FCC standards.
6) Memory: 100 groups of measuring data.
7) Power supply: 3.7V rechargeable Li-ion battery.
8) Standard Sensor: diamond stylus with radius 5μm, force 4mN(0.4gf), and angle 90°
9) Available PC software for data management and Excel reports.
10) Optional printer connecting by USB.
2) DSP chip controlled achieves high accuracy and fast testing speed.
3) Matrix LCD screen displays all parameters and data.
4) 13 parameters and 4 filtering methods: RC, PC-RC, GAUSS and D-P.
5) High quality with ISO/ DIN/ CE/ JIS/ FCC standards.
6) Memory: 100 groups of measuring data.
7) Power supply: 3.7V rechargeable Li-ion battery.
8) Standard Sensor: diamond stylus with radius 5μm, force 4mN(0.4gf), and angle 90°
9) Available PC software for data management and Excel reports.
10) Optional printer connecting by USB.
| Model | Leeb432 |
| Measuring range | Ra:0.005-16μm Rz:0.02-160μm |
| Maximum drive stroke length | 17.5mm/0.7inch |
| Resolution | 0.001μm |
| Roughness parameters |
Ra,Ry,Rq,Rz,Rt,RSm,RS,Rp,Rv,R3z, RSk,Rmax,Rmr |
| Filtering methods | RC, PC-RC, GAUSS, D-P |
| Sample length (lr) | 0.25mm, 0.8mm, 2.5mm/±20μm,±40μm,±80μm |
| Evaluation length(ln) | 1.25mm, 4mm,5mm/Option from(1-5)L |
| Indication error | ≤±8% |
| Indication variability | <6% |
| Memory | 100 Groups |
| Dimension (mm) | 119×47×65mm |
| Weight | 440g |
| Operation environment | 0 ºC -40 ºC |

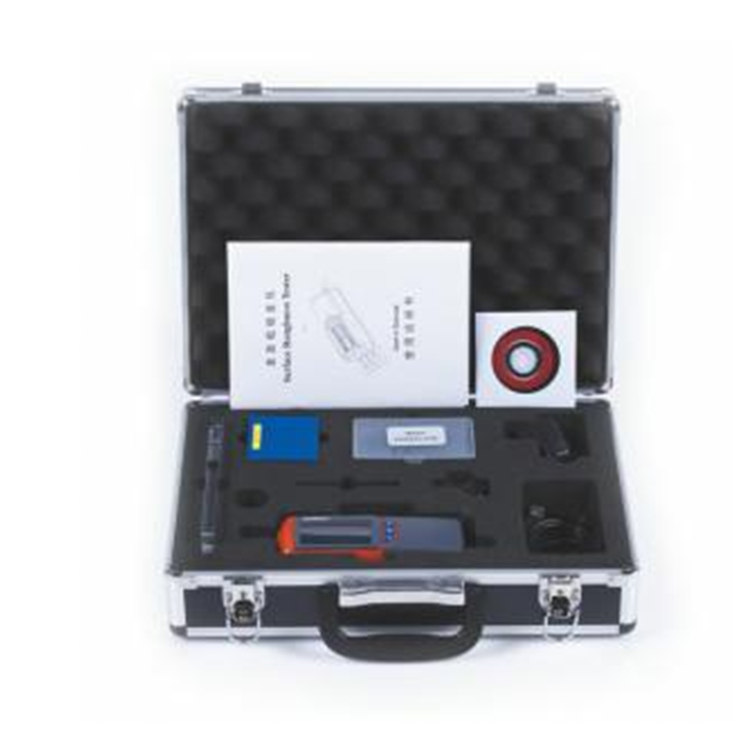

| Standard configuration | Main Unit,Standard sensor,Calibration block, Supporting platform, Power charger, Manual,Certificate, Warranty card, PC analysis software |
| Optional Accessories | Measurement Platforms , optional sensors, printer |
