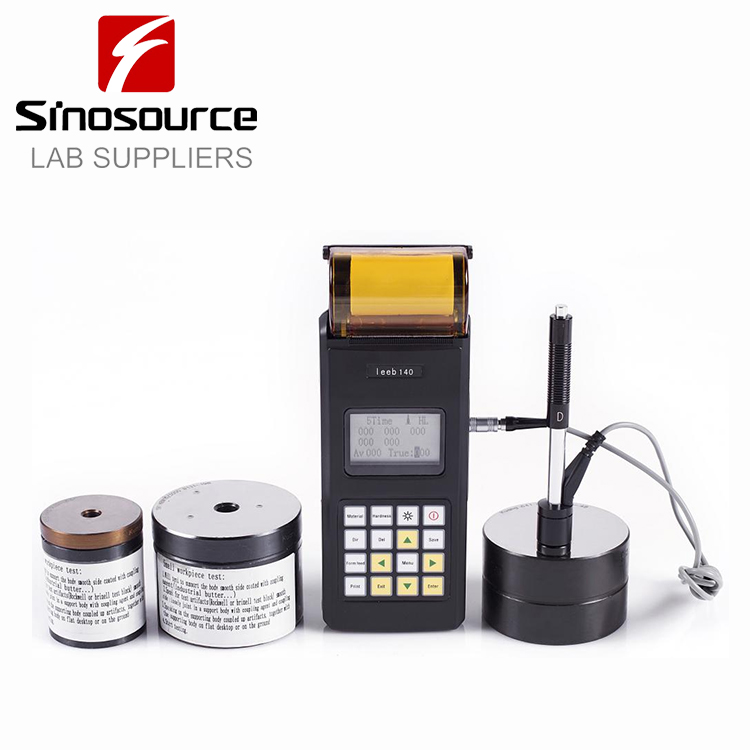

1) With built-in thermal printer
2) PC Software for data transmission, analysis and measurement reports printing
3) Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
4) Test at any angle and direction, even upside down
5) Large LCD screen with back-light, showing all functions and parameters
6) Conversion to tensile strength (U.T.S)
7) Rechargeable Li-ion battery
2) PC Software for data transmission, analysis and measurement reports printing
3) Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
4) Test at any angle and direction, even upside down
5) Large LCD screen with back-light, showing all functions and parameters
6) Conversion to tensile strength (U.T.S)
7) Rechargeable Li-ion battery
| Model | 140 | 160 |
| Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB | |
| Hardness parameter | HL, HRC,HRB, HS,HB,HV | HL, HRC,HRB, HS,HB,HV,HRV,HSD |
| Accuracy | Within±0.5%(HLD=760) | |
| Display | LCD with back-light | |
| Memory | 1250 groups | |
| PC Connection | Available | |
| Printer | Build-in High-speed Thermal Printer, Width for printer paper:44.5±0.5mm | |
| Battery type | Rechargeable NI-MH battery | Rechargeable Li-ion battery |
| Operating temperature | -20℃~+60℃ | |
| Dimensions | 230×86×46mm | |
| Shell | High Quality Plastic | |
| Impact Device Type | D,DC,DL,D+15,G,C,E | |
| Weight | 400g | 450g |

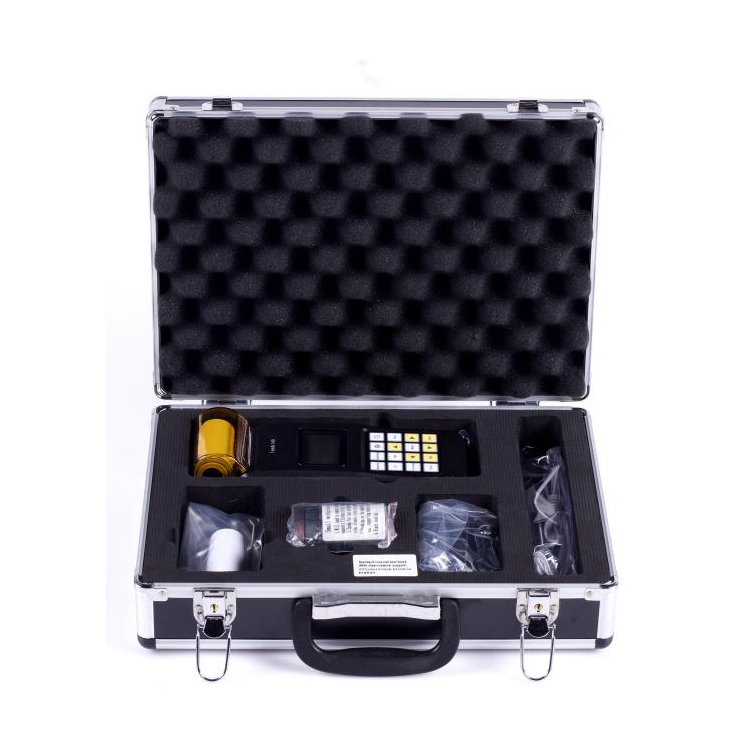

| Standard Delivery | Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Certificate,Calibration block,paper of Printer. | |
| Optional Accessories | Impact DC,D+15,DL,G,C,E,Shaped support ring,Paper for printer | |
