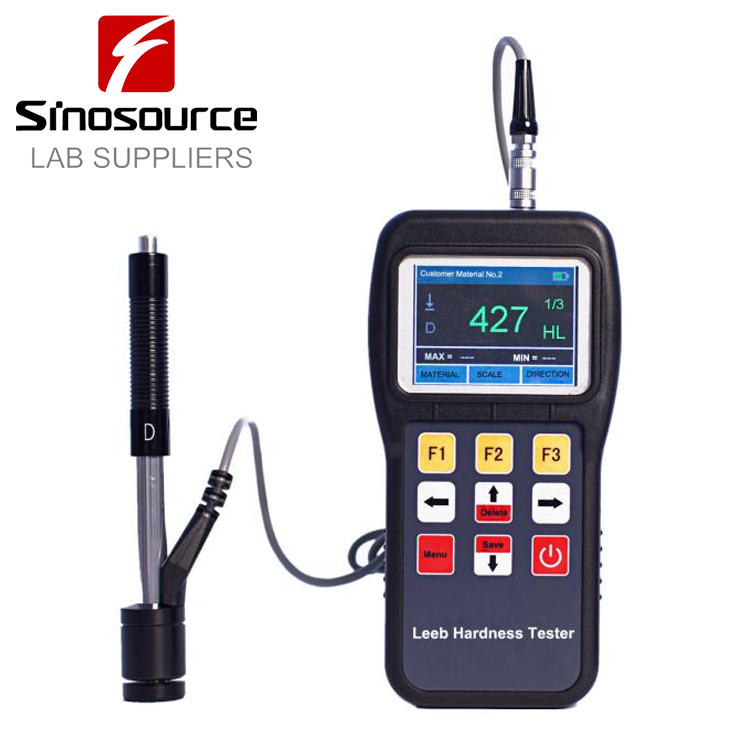

1) LCD color screen with back-light
2) Measuring hardness of all metallic materials
3) Software for PC connection
4) Freely switch to different hardness scales (HL,HB,HRB,HRC,HRA,HV,HS)
5) Automatically identify 7 types of Impact devices for special application
6) Upper and lower limit and sound alarm
7) Rechargeable Li-ion battery with Low power consumption, standby time 150 hours.
2) Measuring hardness of all metallic materials
3) Software for PC connection
4) Freely switch to different hardness scales (HL,HB,HRB,HRC,HRA,HV,HS)
5) Automatically identify 7 types of Impact devices for special application
6) Upper and lower limit and sound alarm
7) Rechargeable Li-ion battery with Low power consumption, standby time 150 hours.
| Model | 190 |
| Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
| Hardness parameter | HL, HRC,HRB, HRA,HS,HB,HV |
| Accuracy | Within±0.3%(HLD=800) |
| Display | Color LCD with back-light |
| Memory | 600 groups |
| PC Connection | Available |
| Printer | No |
| Battery | Rechargeable Lithium Battery |
| Operating Temperature | -20℃~+60℃ |
| Dimensions | 129×68×25mm |
| Shell | Plastic |
| Impact Device Type | D,DC,DL,D+15,G,C,E |
| Weight | 230g |
| Standard Delivery | Main unit,Impact Device type D,Operation manual,Power charger,Small supporting ring,Cleaning brush, Certificate, USB cable,calibration block. |
| Optional Accessories | Impact DC,D+15,DL,G,C,E, Shaped support ring |
